Techno D M-Series Linear Weigh Fillers (aka “Vibratory Channel Fillers” or “Channel Dosers”) are an excellent solution for automatically weighing and filling a wide range of dry, or even frozen, products up to 1cm. The Techno D Linear Weigh Filers have many features that include ease of use, simplified maintenance, and the integration of an HMI SIEMENS interface, which allows for remote operation (via the optional Tele-Service System 4.0).
This M-Series Dry Filler, intended for products up to 1cm—or the optional V-Series (0.5cm), S-Series (3cm) or K-Series (8cm)—performs precise and efficient filling of granulars, spices, chocolate chips, granola, trail mix, pet food, dried fruit, cereal, candy, chips, cookies, and countless other products.
The versatility of these units makes them ideal for different needs, sectors and industries, providing accurate and reliable filling to a wide range of applications and industries that can take advantage of the benefits of automated weighing.
All Techno D Linear Weigh Fillers can be used semi-automatically by discharge pedal, or incorporated into an automated packaging line that can include Elevators/Conveyors for feeding product to the filler, Package Sealers, Exit Conveyors, Receiving Trays and Labelers. Additionally, Thermoforming can be added in place of using preformed bags.
Thanks to the new intuitive SIEMENS HMI interface, the Techno D Linear Weigh Fillers are designed to be user friendly, with up to 100 programable recipes. The optional Tele-Service System 4.0 with webcam integration provides the ability to access, monitor, and download production data and results.
*Max Fills/Minute subject to product and container size
**Sample Fills/Minute based upon 1 Kilogram - Roasted Coffee Beans@350gr/Liter
Specs
This M-Series Dry Filler, intended for products up to 1cm—or the optional V-Series (0.5cm), S-Series (3cm) or K-Series (8cm)—performs precise and efficient filling of granulars, spices, chocolate chips, granola, trail mix, pet food, dried fruit, cereal, candy, chips, cookies, and countless other products.
The versatility of these units makes them ideal for different needs, sectors and industries, providing accurate and reliable filling to a wide range of applications and industries that can take advantage of the benefits of automated weighing.
All Techno D Linear Weigh Fillers can be used semi-automatically by discharge pedal, or incorporated into an automated packaging line that can include Elevators/Conveyors for feeding product to the filler, Package Sealers, Exit Conveyors, Receiving Trays and Labelers. Additionally, Thermoforming can be added in place of using preformed bags.
Thanks to the new intuitive SIEMENS HMI interface, the Techno D Linear Weigh Fillers are designed to be user friendly, with up to 100 programable recipes. The optional Tele-Service System 4.0 with webcam integration provides the ability to access, monitor, and download production data and results.
| Models | M1 | M2 | M3 | M4 |
|
Weighing Heads |
1 |
2 |
3 |
4 |
|
Vibratory Channels |
1-U |
2-U |
3-U |
4-U |
|
Hopper Size |
37 L |
66 L |
99 L |
132 L |
|
Weighing Bucket |
1.5 L |
7.2 L |
12 L |
|
|
Max Fills/Minute* |
12 |
24 |
36 |
48 |
|
Sample Fills/Minute** |
6 |
12 |
18 |
24 |
*Max Fills/Minute subject to product and container size
**Sample Fills/Minute based upon 1 Kilogram - Roasted Coffee Beans@350gr/Liter
Specs
- Max size of product to be weighed/filled - Up to 1cm
- Fill Size Minimum - 20 grams (subject to product being filled)
- Max Fill Size - 5kg
- Fill accuracy within 0.5 to 1%, subject to product and container being filled
- 220v at 60hz
- Power Consumption - 0.4kw per Vibratory Channel
- Air Consumption @ 7bar: from 0.1 to 0.4 lt/cycle
- Chute Opening Diameter: 20 to 100mm - 100mm is Standard
- Weight 100 kg - with 1 Head & 1 Channel
- CE Certified
- IP42 Electrical Protection Rating
- Siemens Touch Screen Control Panel with PLC
- SMC Pneumatics
- Off Center Load Cell for more accurate fills
- 100 Programmable Recipes
- Cascading Channels and (2) Photocells for Flow Control (Specific to the K-Series)
- Product mix: 2 to 4 on Multi-Head Weigher (computer calculates amounts in weighing buckets and dispenses from selected buckets for improved accuracy and speed)

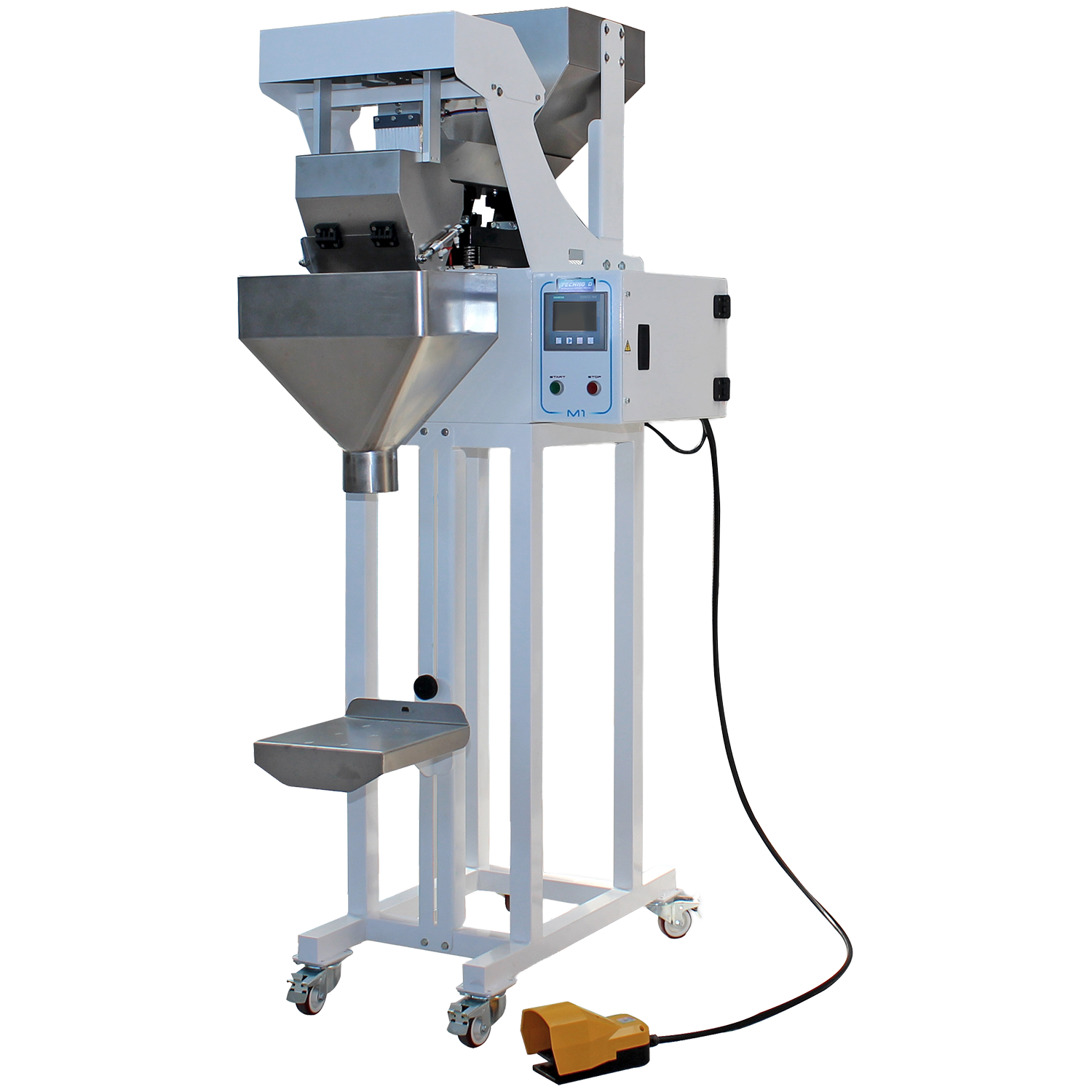

- Semi-Automatic Mode controlled with Foot Pedal
- Single - Multi-Weighing Discharge meaning larger fills that require multiple doses are automated with a single pedal push
- Adjustable vibrating speed on channel(s) for improved accuracy and operator control
- Adjustable Ramp Down speed on vibrating channel(s) for improved accuracy and operator control
- 304 Stainless all parts that come in contact with product being filled
- Frame and stand (if ordered) Glossy white epoxy paint

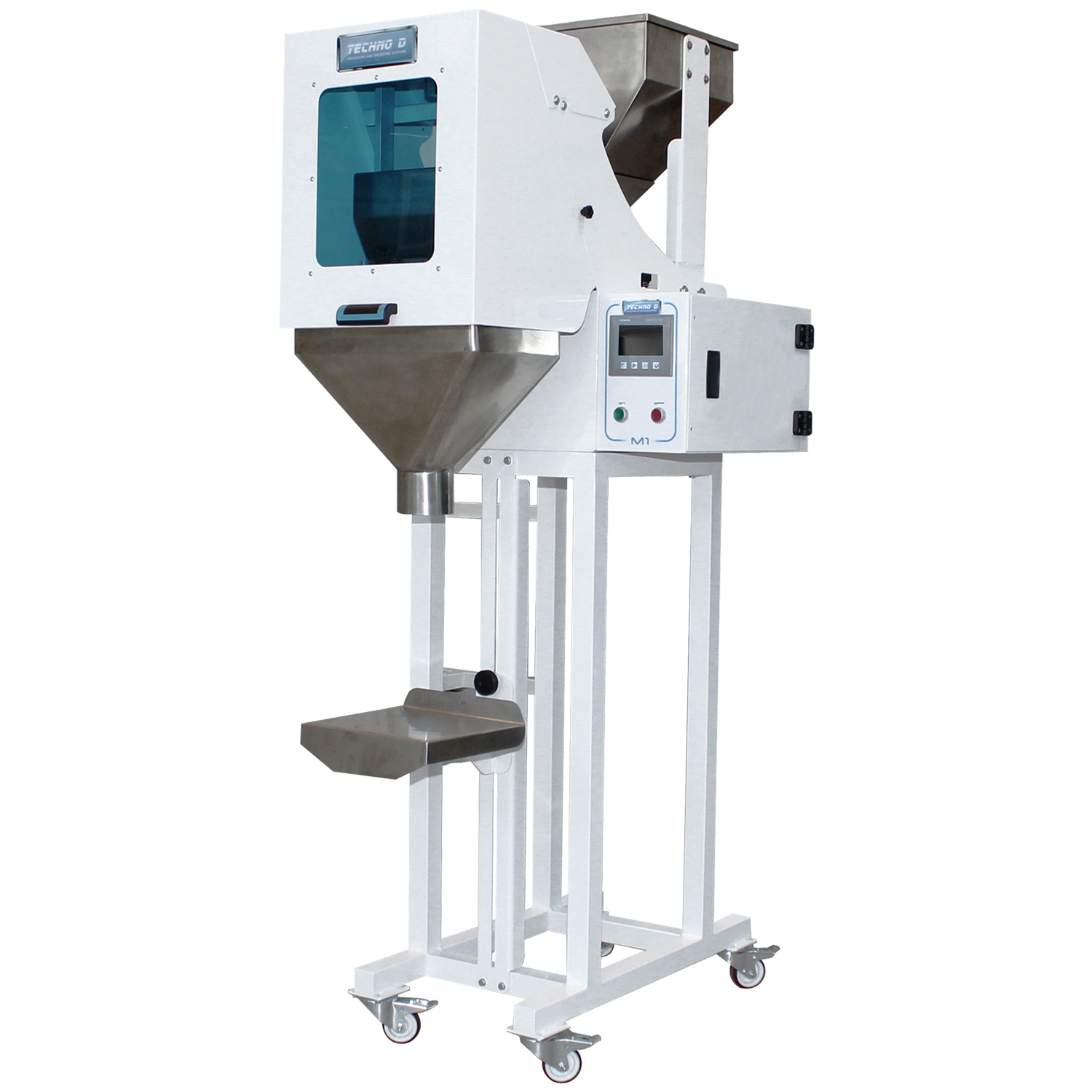

- Cover for single head doser
- Fragile product kit (S/K series only)
- Removable Reducer for smaller containers

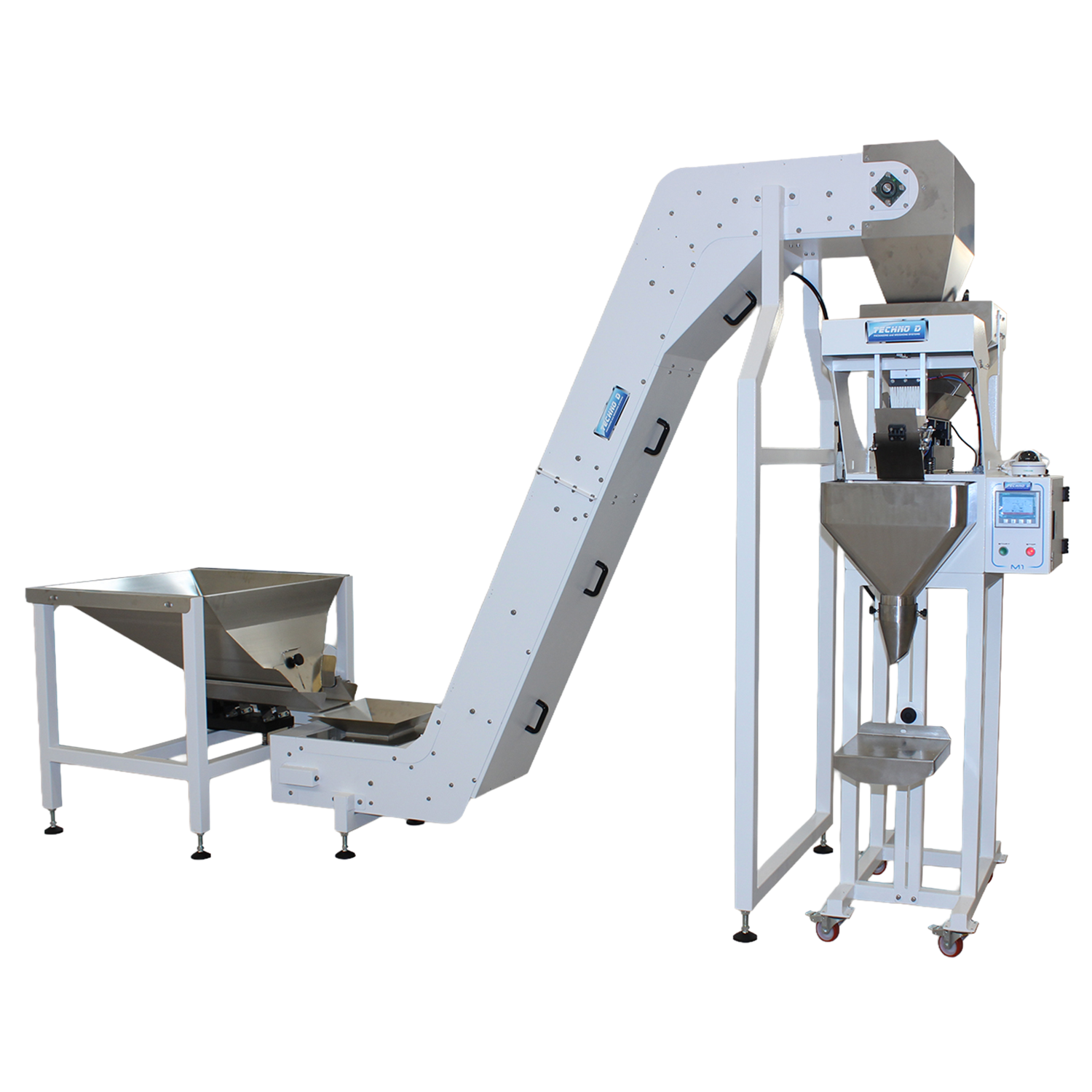

- Elevator/Conveyor to fee Filler
- Vibrating Feed Hopper for Elevator/Conveyor
- Discharge Chute Reducer
- Bag Sealing
- Form Film Sealing instead of pre-made bags or containers
- Exit Elevator
- Receiving Table at Exit
- Labeling
- Stainless AISI 304 Frame and Stand instead of painted
- AISI 316 Stainless for corrosive products such as salt
- Tele-Support
CALL FOR PRICING & AVAILABILITY
