Sachet Packaging Machine - 2-8 Lanes
click on thumbnail to zoom

Sachet Packaging Machine - 2-8 Lanes

Price: Contact Us
  • Item #SACHET-2-8

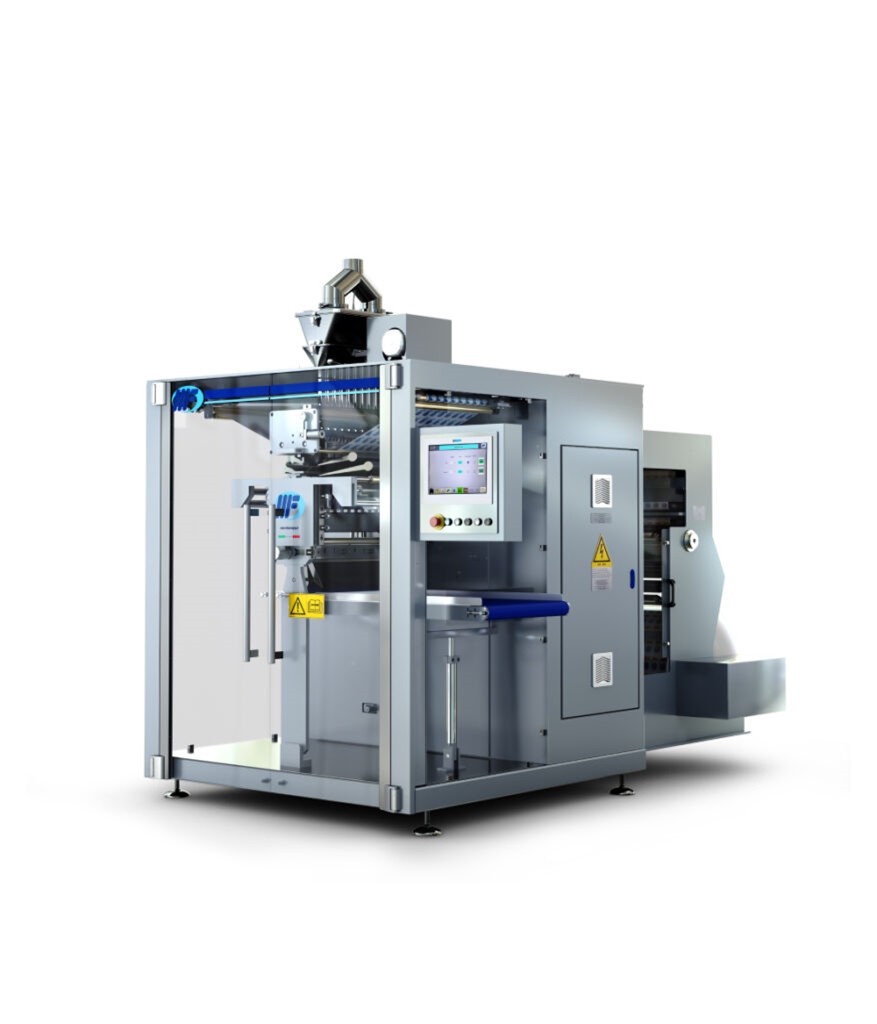

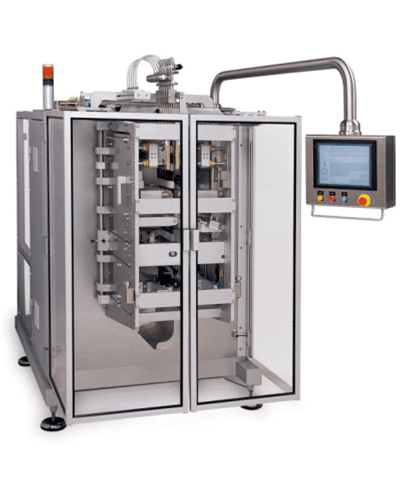

WMD's 2 to 8 Lane Sachet Packaging Machines are compact and cost effective pneumatic driven Vertical Form, Fill & Seal machine which is designed for multi-lane sachet packaging. This high quality and widely used equipment is specifically tailored for North American markets which include delivering consistent, premium quality sachets for single serving applications.  Industries include, but not limited to food, cosmetics, pharmaceuticals and nutraceuticals.

We offer multiple models with specialized filler options, allowing packaging of a wide range of products tailored to customer requirements, particularly for single serving applications.  With a compact yet rugged design, it's ideal for production facilities and co-packers alike to manage diverse product lines. Versatility and reliability also make it an excellent choice for startups looking to scale new products efficiently within the market.

Our Sachet series packing machines are built for versatility, capable of producing both 3-side and 4-side seal sachets with a variety of finishing options like straight cut seals for a clean appearance, jagged edge seals, tear notches for convenience and custom horizontal seal shapes as in a bottle neck design.  They also enable the production of chained sachets in predefined counts, making them an excellent choice for multipack presentations and promotional packaging applications.

*Images for these packaging machines are for discussion purposes only as there are several hundred sachet packaging machine configurations.  Final photos, drawings, and specifications will be provided for any machine prior to purchase.

Specifications

  • Product Contact Components: 316 Stainless
  • Material: Body - SS304 (Stainless Steel), SS316 Option
  • Lanes: 2-8 (Up to 16-Lanes on larger machines)
  • Bag Type: Sachet, Three Side Seal, Four Side, Irregular Shape Seal Options
  • Filling Range: 0 ~ 50 mL, 30 ~ 100 mL
  • Film Width: Built to order
  • Bag Width: 25 ~ 110 mm (One size within this range to be fixed)
  • Bag Length: (Standard): 50 ~ 160 mm
  • Bag Length: (Customized): 50 ~ 204 mm
  • Irregular Shapes
  • Packaging Film: Laminated Film, OPP/CPP, OPP/CE, PET/PE, NILO/PE, PE
  • Packing Speed: 20 ~ 40 bags/min Per Lane
  • Filling Accuracy (Error): +/- 1 ~ +/- 6% Depending on filler type and packet size
  • Detection: Photoelectric Eye-Mark Sensor (included)

Optional Features

  • Different Bag Sizes: Larger or Smaller
  • Printing: Date or Lot Coder or Barcode Printers
  • Gas Injection
  • Product Feeding & Handling: Screw or vacuum conveyors for powders, bucket elevator for granular products, agitator/mixer for pastes, and heated hopper for liquids
  • Quality & Safety Control: In-line checkweigher for weight accuracy, in-line metal detector for safety, and vision system for printed code verification.
  • Packaging Efficiency: Automatic sachet pack sorting and counting system for streamlined box filling
  • Customization & Flexibility: Recipe management for easy product setup plus mechanical, software and hardware upgrades tailored to special requirements
  • Multi-Lane Packaging Machines up to 16-Lanes
We offer flexible sachet pack sealing options which include:
  • Straight cut: for a clean finish
  • Jagged Cut: for easy opening

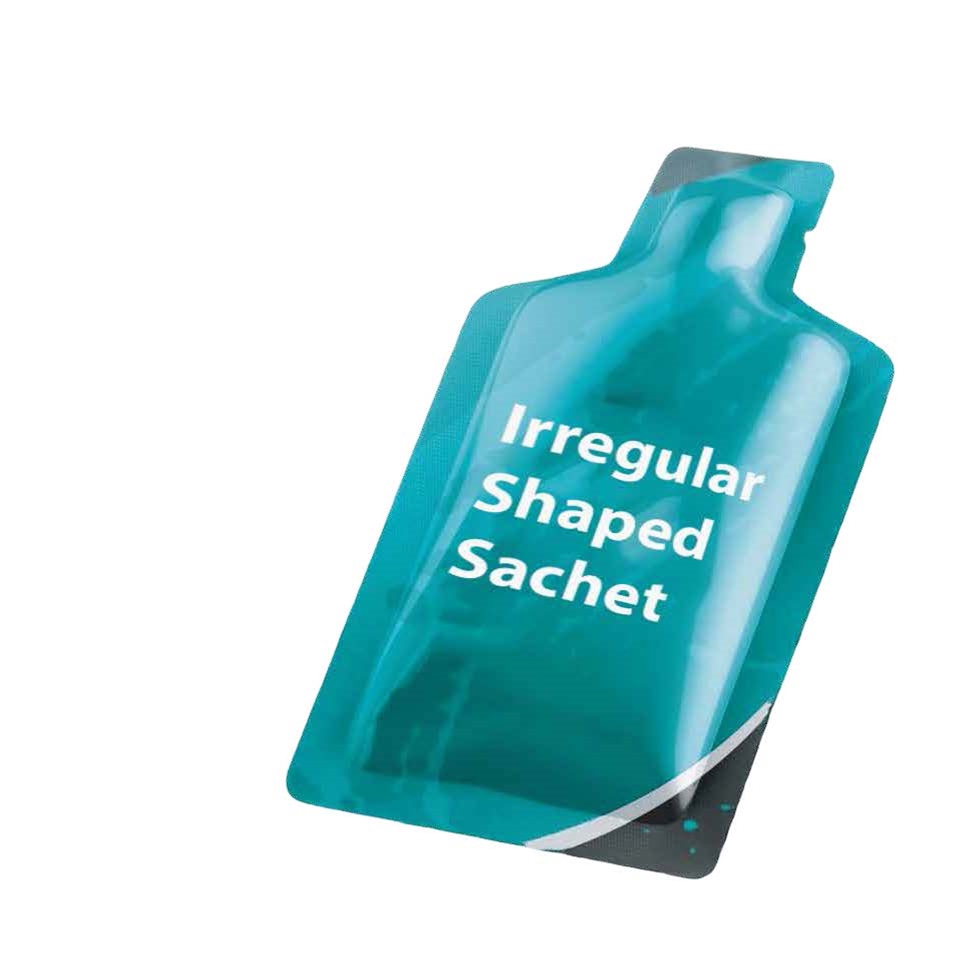

  • Shaped Seals w/tear notch: for premium look
  • Customized Seal Shapes: Limited (acquire within)


CALL TO ORDER

CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will call with actual shipping costs prior to shipping or charging your credit card.

WMD Equipment - Your Trusted Source for Liquid & Dry Filling and Processing Equipment
