The Frantoino BIO 50 is part of the Oliomio Series of Olive Oil Mills (aka Olive Oil Plants) by MORI-TEM. These machines a very unique, compact, and have monoblock design; developed for the small producers of olive oil to be less labor intensive than using a traditional press for extraction. Simply pour clean olives into the receiving hopper where a where a motor driven screw feeds them to the crusher which grinds the olives into paste.
The crushed olives, now paste, drops into the Malaxer (mixer) below where a specially designed helical agitator prepares the paste for extraction of oil. The paste is then sent to the 2-stage decanter where the oil is separated from the paste. Extra Virgin Olive Oil pours from one outlet for collection, and the waste, which consists of pomace and water, (aka Husk), exits the machine from an outlet at the back of the machine.
Standard features on all models:
The crushed olives, now paste, drops into the Malaxer (mixer) below where a specially designed helical agitator prepares the paste for extraction of oil. The paste is then sent to the 2-stage decanter where the oil is separated from the paste. Extra Virgin Olive Oil pours from one outlet for collection, and the waste, which consists of pomace and water, (aka Husk), exits the machine from an outlet at the back of the machine.
Standard features on all models:
- Hourly Production: 50 - 60 Kg
- 2-Phase Milling Process
- Horizontal Malaxer
- Heated Malaxer
- 2-Phase Decanter
- Adjustable Decanter Nozzles
- Inverter for regulation of Crusher and Decanter speed
- Speed control of paste transfer to Decanter
- Flow meter for water dosage
- Drum washing kit
- Entire structure is manufactured of AISI 304 stainless steel and food grade materials
- 24-month warranty
- Spremoliva C30
- Frantoino Bio 50

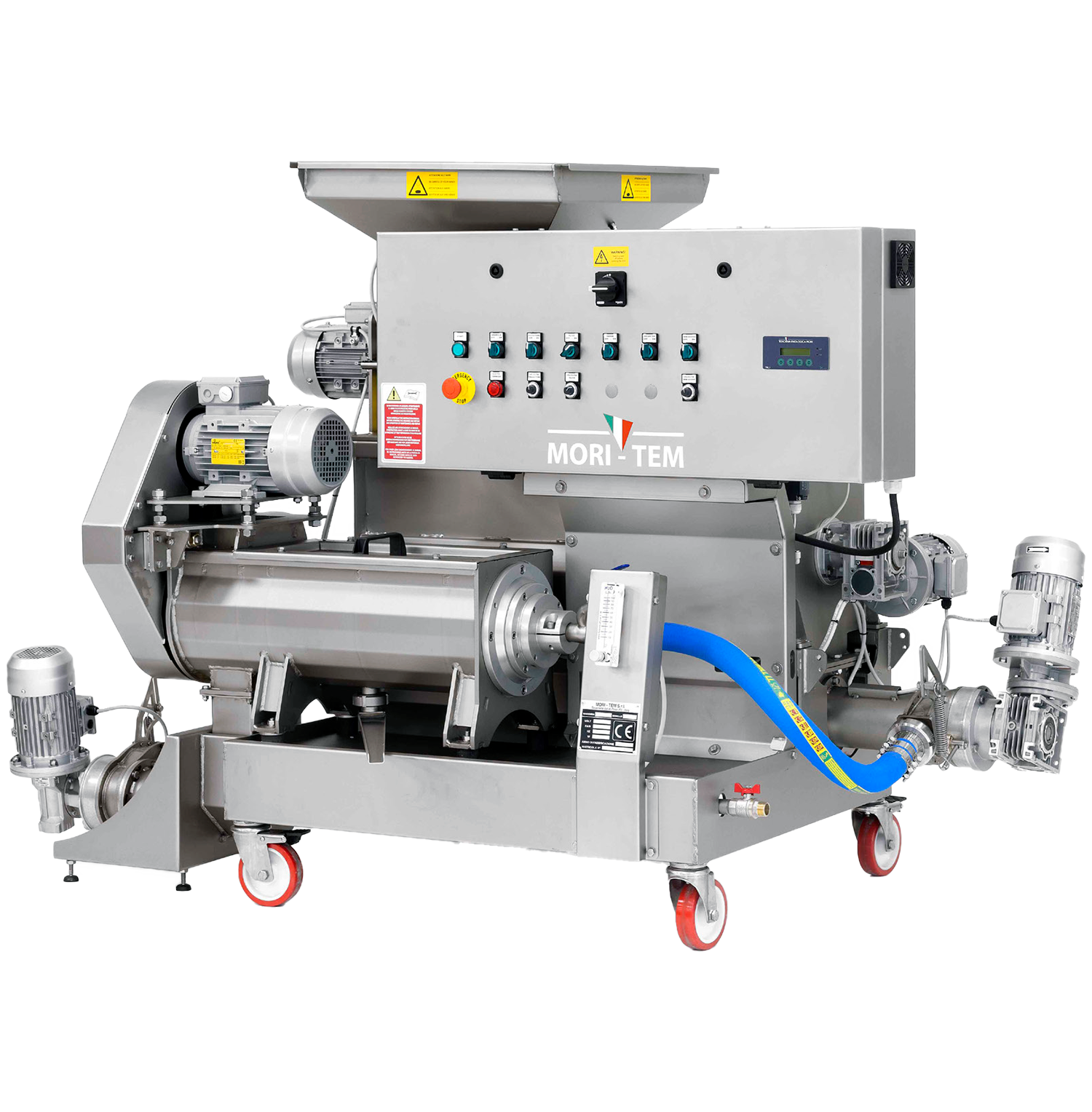

- Olimio 80 Plus
- Oliomio Gold 100
- Profy 200
| SPREMOLIVA C30 | FRANTOINO BIO 50 | OLIOMIO 80 PLUS | OLIOMIO GOLD 100 | PROFY 200 | |
| PRODUCTION RATE | 30-40 Kg/H | 50-60 Kg/H | 70-80 Kg/H | 90-100 Kg/H | 150-200 Kg/H |
| CRUSHER TYPE | Knife | Knife | Knife | Knife | Knife/ Hammer |
| CONTINUOUS MALAXER | No | No | Yes | Yes | Yes |
| HEATED MALAXER | No | Yes | Yes | Yes | Yes |
| TEMP GAUGE | No | No | Yes | Yes | Yes |
| DECANTER NOZZLES | Fixed | Adjustable | Fixed | Fixed | N/A |
| DECANTER WASH KIT | No | No | No | Yes | Yes |
| WASTE PUMP | No | No | No | Yes | Yes |
| POWER REQUIREMENTS | 1-PH, 220v, 3.5 kW | 1-PH, 220v, 3.5 kW | 1-PH, 220v, 4.5 kW | 1-PH, 220v, 5.5 kW | 3-PH, 220v, 9.0 kW |
| DIMENSIONS LxWxH: Weight: |
200x117x139 cm 330 Kg |
200x117x141 cm 350 Kg |
200x117x141 cm 380 Kg |
200x117x141 cm 420 Kg |
233x86x174 cm 950 Kg |
Available Options and Accessories
- Destoning Kit
- Washer/De-Leafer/Elevator
- Waste/Husk Discharge Pump
