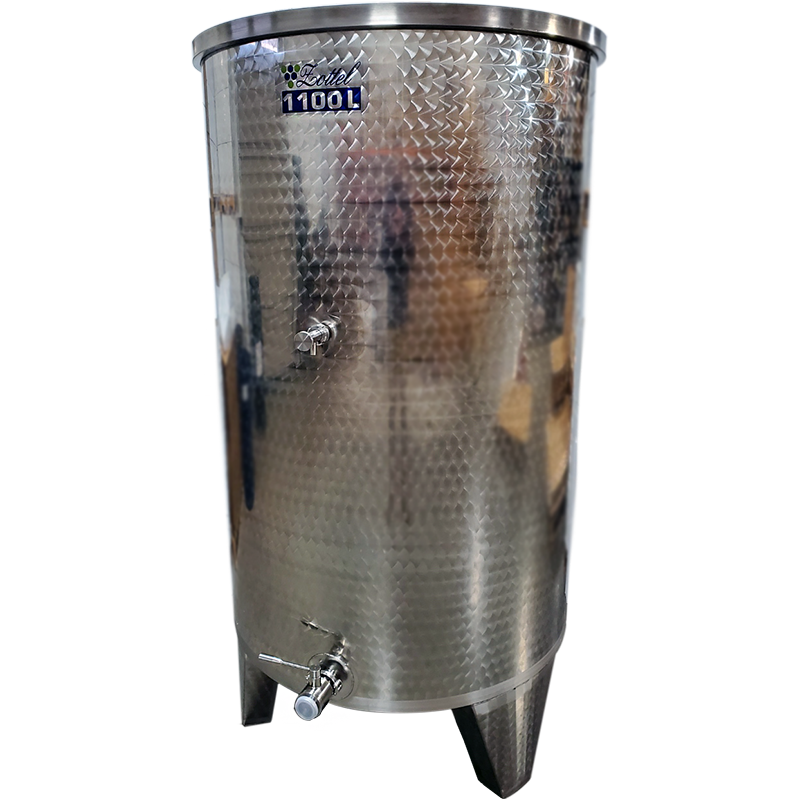

These Premium Quality Variable Capacity Flat Tanks on LEGS with REINFORCED RIMS (1,000L & larger) and "Air System" sealing lids are built from AISI 304 BA 18/10 stainless steel. Each feature a smooth mirror finish on the inside for optimal cleanliness and an attractive textured exterior. They are built to meet the needs of wine, cider, olive oil, and many other food and beverage producers to allow separation and settling out of solids (clarification) while aging or waiting to bottle. These are the highest quality Flat Bottom Tanks you will find anywhere!
DETAILS
DETAILS
- Hand Pump/Guage with Inflatable Tube for air system included to seal lid
- Marble Airlock Included
- 100% Adjustable Floating Pneumatic Lid which accepts Marble Airlock
- Lid is easily adjusted to provide a minimum of headspace
- Built from AISI 304 Stainless Steel
- High Quality Artisan Manufactured by Zottel
- Built on Legs... YES, Includes Legs
- Reinforced Rims for 1,100 Liters and Larger with added band of square steel

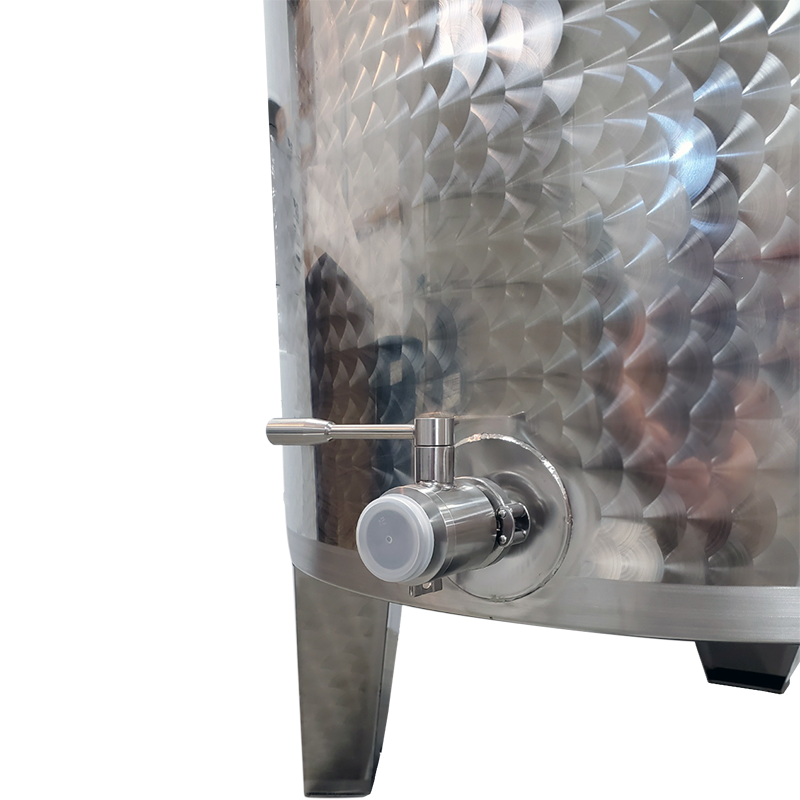

- 1.5 Inch Tri-Clamp Ball Total Drain Valve
- Sample Tap - Included and is approx. middle of the tank from top to bottom
- Lift Arm is Optional item and Not Included
- Other Special Order Options: Thermometer, Cooling Jacket, Round Manway Door, Ladder Support
- Larger sizes available upon request
SPECS
| MANUFACTURER | CAPACITY | VOLUME DIM.(DIA. x HGT.) | LEG HEIGHT |
DRAIN PORT |
SAMPLE TAP |
| Zottel | 100 Liter | 398x850 mm | 250 mm | .75" Tap | |
| Zottel | 200 Liter | 565x845 mm | 250 mm | .75" Tap | |
| Zottel | 300 Liter | 636x1000 mm | 320 mm | 1.0" Tap | |
| Zottel | 500 Liter | 794x1000 mm | 320 mm | 1.5" TC Butterfly Valve | YES |
| Zottel | 600 Liter | 794x1250 mm | 320 mm | 1.5" TC Butterfly Valve | YES |
| Toscana | 800 Liter | 930x1250 mm | 400 mm | 1.5" TC Butterfly Valve | YES |
| Zottel | 800 Liter | 794x1500 mm | 320 mm | 1.5" TC Butterfly Valve | YES |
| Toscana | 1000 Liter | 930x1500 mm | 400 mm | 1.5" TC Butterfly Valve | YES |
| Zottel | 1100 Liter | 953x1500 mm | 320 mm | 1.5" TC Butterfly Valve | YES |
| Toscana | 1500 Liter | 1150x1500 mm | 400 mm | 1.5" TC Butterfly Valve | YES |
| Zottel | 1500 Liter | 1115x1500 mm | 360 mm | 1.5" TC Butterfly Valve | YES |
| Zottel | 2000 Liter | 1275x1500 mm | 360 mm | 1.5" TC Butterfly Valve | YES |
CUSTOMER PICK-UP OR TRUCK SHIPMENT ONLY! - We will contact you with actual shipping costs and crating costs (when applicable) prior to finalizing the order or charging your credit card.
This item is not crated for shipping either when imported to the U.S. as the added weight and size would make them cost prohibitive to ship. Accordingly they may be received with very minor scratches not that dissimilar than they will receive during their normal use, but are guaranteed to arrive in working order.
