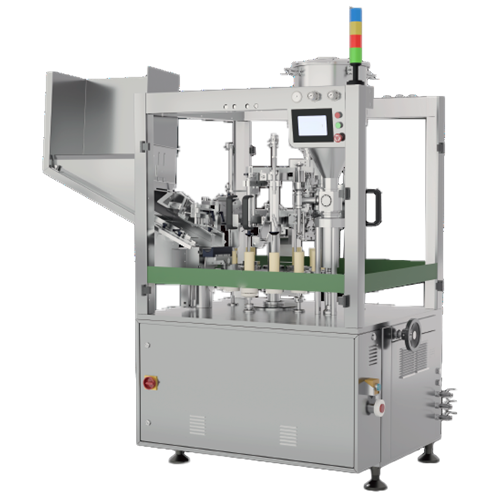

Tube Filling and Sealing Monobloc - Automated 60 Tubes per Minute for Plastic or Aluminum aka Universal
This Automated Tube Filling and Sealing machine is designed for precise filling of Aluminum or Plastic (PE, PP, & Polyfoil) tubes with creams, gels, and other viscous and non-viscous liquids and cosmetics. Plastic tubes are hot sealed, with excess plastic cut & discarded, and Aluminum tubes are folded and crimped. After filling and sealing, tubes can be coded (date, lot no., batch no., etc.) on either or both sides. These are high quality, durable, accurate filling machines, that are easy to operate.
FEATURES
- Can be outfitted for either Plastic or Aluminum Tubes

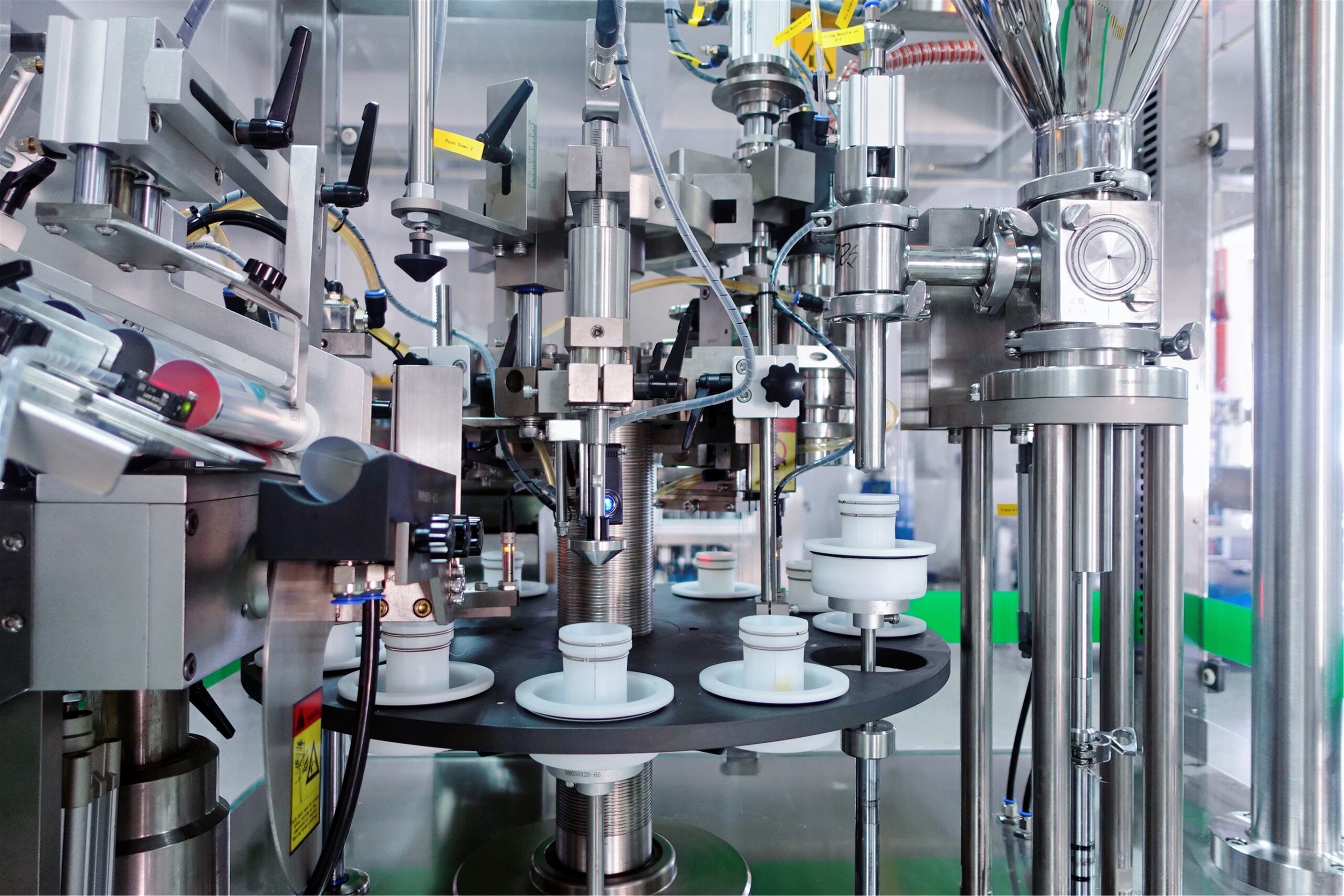

- Compact 12-Position Rotary Monobloc
- Engineered & Constructed for:
- Accuracy
- Speed
- Ease of Use
- Reliability - Long Life Span
- Compact Foot Print
- Fully breaks down for cleaning and sterilization in 20-30 minutes
- Equipped with high quality components such as Controls & Switches by Mueller and Schneider, SMC Pneumatics, and Mitsubishi Electronics
- Air blowing device is additionally installed

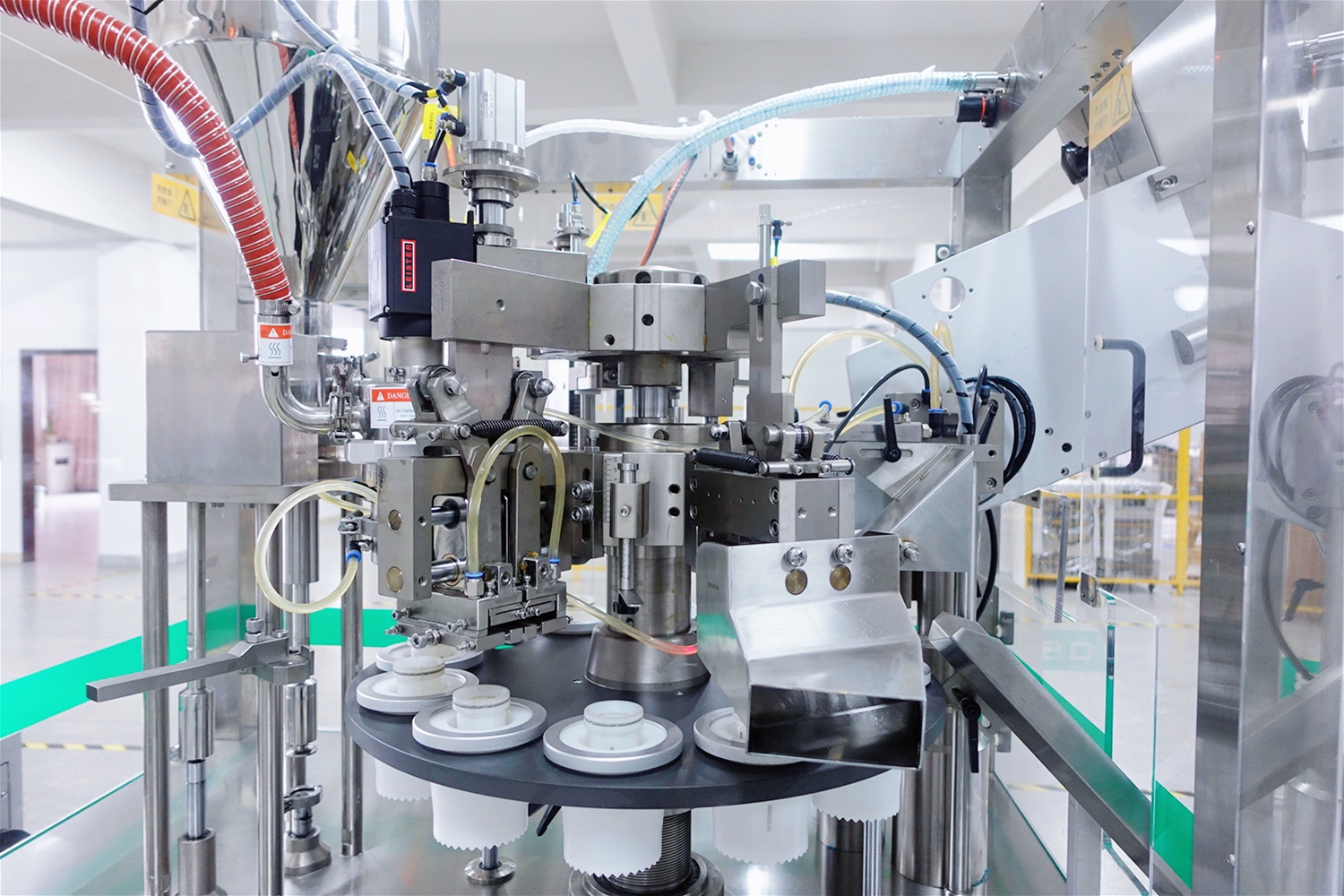

- The filling head adopts the combined blow-out and cut-out filling mode so as to prevent the sealing quality and filling volume being influenced as a result of long wire/stringy drawn out by the materials of high viscosity.
DETAILS
- Manufactured of of high quality stainless steel AISI 304
- All elements having contact with product are made of high quality stainless steel AISI 316
- Filling system is 100% Pneumatic
- Electronic control of sealing process
- Hot air sealing technology for plastic tubes - Folding for Aluminum Tubes (Single, Double, Saddle, Triple)
- Filling accuracy error: < ± 1 % of volume
- Single or dual sided coding with set of fonts included
- This automated yet compact tube filling and sealing machine works with all plastic and laminated tubes and most aluminum tubes
- Filling Volume 5ml to 250ml (filling pistons and valves outfitted for your application)
- 60 Tubes/Min
- Requires 85-115 PSI compressed air supply with 30-35 CFM
- 220v, 3-phase, 4kw (20amps)
- Tube Length: 60 to 230mm
- Tube Diameter: 10-50mm
- 40L Hopper of 316L Stainless Steel
- CE Certified
- Dimensions 200x120x218cm (WxDxH)
- Weight 1,200kgs
OPTIONS
- Filling Line can be configured for either Aluminum or Plastic Tube Sealing (not both)
- Alternate Piston and hardware for smaller fill volumes
- Alternate Hopper sizes
- Larger Capacity Tube Feeding System
